Infinium Global Diversity Array (GDA) with Enhanced PGx is the most comprehensive genotyping microarray on the market for pharmacogenomics research.
Sample throughput
Number of samples
Number of markers
The Infinium Global Diversity Array (GDA) with Enhanced PGx-8 v1.0 BeadChip supports pharmacogenomics (PGx) research in diverse populations as well as polygenic risk score development, ancestry determination, and genetic disease research.
The largest genome-wide backbone of any array developed for PGx research
> 44K genome-wide PGx markers spanning > 2K PGx targets
Automated, scalable 3-day workflow with minimal hands-on time
Robust CNV detection and targeted amplification to allow PGx pseudogene disambiguation
PGx star allele and variant coverage across 1700+ targets for over 50 genes with optional DRAGEN Array secondary analysis
The GDA with Enhanced PGx offers coverage of > 6K annotated variants from public PGx databases like PharmGKB1, CPIC2, PharmVar3, and ClinVar4, including hard-to-discern genes like CYP2D6, CYP2B6, and TPMT.
The GDA with Enhanced PGx features improved tagging in exonic regions and enriched coverage to map loci from genome-wide association studies (GWAS) with previously identified disease or trait associations.
The BeadChip includes quality control (QC) markers for large-scale studies, enabling sample identification, tracking, ancestry determination, stratification, and more.
| Assay type | Infinium LCG |
|---|---|
| Automation capability | Automated array loader, Liquid handling robot(s) |

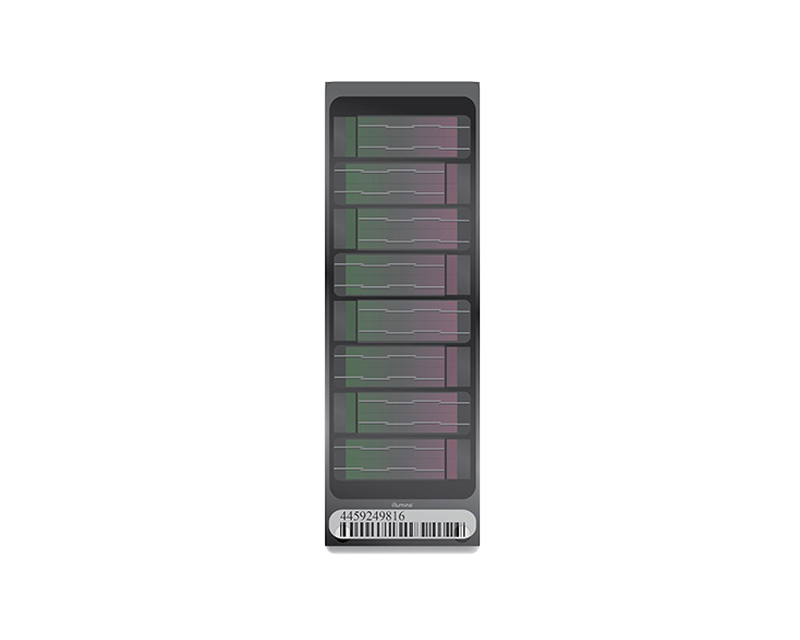

| Description | The Infinium Global Diversity Array with Enhanced PGx is built on an 8-sample BeadChip and contains > 1.9M markers. It is the most comprehensive genotyping microarray commercially available for pharmacogenomic (PGx) research, and also supports disease and diversity studies and other applications. |
| Input quantity | 200 ng |
| Instruments | iScan System |
| Method | Genome-wide genotyping array |
| Nucleic acid type | DNA |
| Number of markers | 1,933,117 markers in total; custom add-on capacity of 125K |
| Number of samples | 8 samples per array |
| Sample throughput | 1728 samples per week |
| Specialized sample types | Blood |
| Species category | Human |
| Technology | Microarray |
| Variant class | Single nucleotide polymorphisms (SNPs), Chromosomal abnormalities, Insertions-deletions (indels), Copy number variants (CNVs) |
Match your chosen kit size to the number of samples you run at a time. Each kit is processed as a single batch and is not designed to be divided across multiple experiments. If you are processing several low-throughput batches, order multiple small kits. The fixed content kits include the interpretation report with star allele calls and metabolizer status.
Custom add-on content is available.
The Infinium Global Diversity Array with Enhanced PGx is designed to support pharmacogenomics (PGx) research, polygenic risk score development, ancestry determination, and genetic disease research.
Infinium Global Diversity Array with Enhanced PGx
Pharmacogenomics, the study of how variations in the human genome affect our response to medications, may help reduce adverse drug reactions and medical costs.
Polygenic risk scores represent the total number of genetic variants an individual has that increase their risk of developing a particular disease.
Genomics in drug discovery and development
Explore innovative genomic analysis solutions designed to inform drug discovery efforts and support development of targeted therapeutics.
Brochure PDF < 1 MB
| Infinium Global Diversity Array with Enhanced PGx | Infinium Global Diversity Array-8 Kit | Infinium Global Screening Array-24 Kit | |
|---|---|---|---|
| Assay type | Infinium LCG | Infinium LCG | Infinium HTS |
| Automation capability | Automated array loader, Liquid handling robot(s) | Automated array loader, Liquid handling robot(s) | Automated array loader, Liquid handling robot(s) |
| Description | The Infinium Global Diversity Array with Enhanced PGx is built on an 8-sample BeadChip and contains > 1.9M markers. It is the most comprehensive genotyping microarray commercially available for pharmacogenomic (PGx) research, and also supports disease and diversity studies and other applications. | The 8-sample Infinium Diversity Array provides targeted coverage of more than 4800 key genes across the genome. Approximately 1.8M markers are included on the BeadChip for high exonic coverage in regions of disease relevance, providing highly accurate copy number variation calls, and an average resolution of 1.5Mb. | The Infinium Global Screening Array Kit is an economical genotyping array for population-scale genetics, translational research, variant screening studies, and precision medicine research, combining optimized multiethnic genome-wide content, curated clinical research variants, and QC markers. |
| Input quantity | 200 ng | 200 ng | 200 ng |
| Instruments | iScan System | iScan System | iScan System |
| Method | Genome-wide genotyping array | Genome-wide genotyping array | High-throughput genotyping array, Genome-wide genotyping array |
| Nucleic acid type | DNA | DNA | DNA |
| Number of markers | 1,933,117 markers in total; custom add-on capacity of 125K | 1,825,277 fixed markers. Custom marker add-on capacity: Up to 175K. | 654,027 fixed markers. Custom marker add-on capacity: Up to 100K. |
| Number of samples | 8 samples per array | 8 samples per array | 24 samples per array |
| Sample throughput | 1728 samples per week | 1728 samples per week | 5760 samples per week |
| Specialized sample types | Blood | Blood, FFPE tissue, Buccal swabs, Saliva | Blood, FFPE tissue, Buccal swabs, Saliva |
| Species category | Human | Human | Human |
| Technology | Microarray | Microarray | Microarray |
| Variant class | Single nucleotide polymorphisms (SNPs), Chromosomal abnormalities, Insertions-deletions (indels), Copy number variants (CNVs) | Single nucleotide polymorphisms (SNPs), Loss of heterozygosity (LOH), Chromosomal abnormalities, Structural variants, Copy number variants (CNVs) | Single nucleotide polymorphisms (SNPs), Structural variants, Copy number variants (CNVs) |
Library Prep and Array Kit Selector
Find the right sequencing library preparation kit or microarray for your needs. Filter by method, species, and more. Compare, share, and order kits.
Identify sequencing panels or microarrays that target your gene(s) of interest.

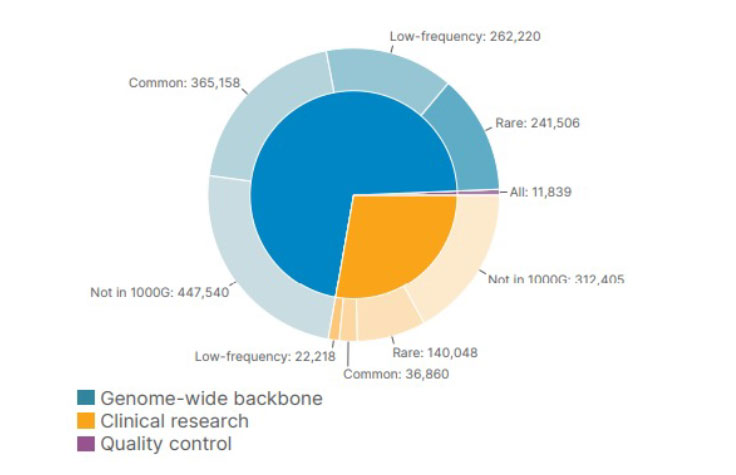

Inner pie shows the proportion of the array selected for genome-wide coverage, clinical research, and quality control (QC). Outer ring shows the weighted reference global allele frequency for unique variants present in 1kGP.5 Variants not in 1kGP are labeled. Counts represent unique variants.

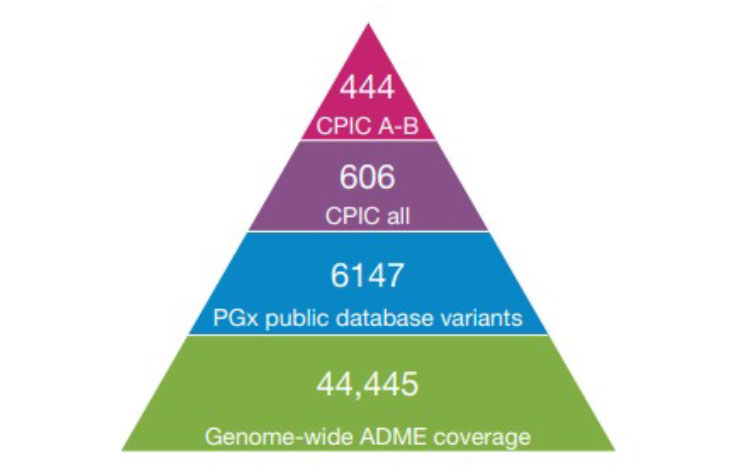

Clinical research content based on CPIC guidelines and PharmGKB database.1,2 Includes PGx public database variants, variants annotated in PharmGKB, PharmVar,3 CPIC, genome-wide PGx coverage, extended ADME genes, CPIC level A genes, including targeted imputation tag SNPs, and CPIC level A CNV tags.

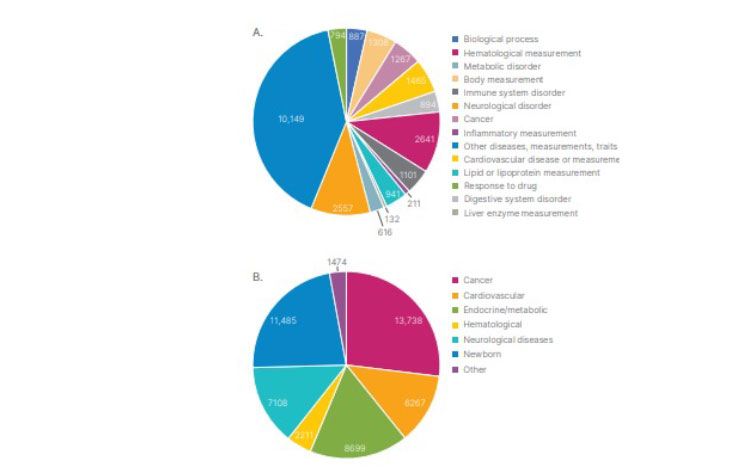

The Infinium Global Diversity Array with Enhanced PGx includes extensive coverage of numerous phenotypes and disease classifications based on (A) ClinVar categories and (B) NHGRIGWAS categories.
QC variants on the Infinium Global Diversity Array with Enhanced PGx enable various capabilities for sample tracking such as sex determination, continental ancestry, human identification, and more.
Trusted Infinium chemistry delivers the same high-quality, reproducible data that Illumina genotyping arrays have delivered for > 10 years. The high signal-to-noise ratio of the individual genotyping calls from the Infinium assay provides access to genome-wide copy CNV calling.
| Data performance | Valuea | Product specificationb | |
| Call rate | 99.7% | > 99.0% Avg | |
| Reproducibility | 99.99% | > 99.90% | |
| Spacing | |||
| Spacing (kb) | Mean | Median | 90th%c |
| 1.53 | 0.61 | 3.91 | |
a. Values are derived from genotyping 2228 HapMap reference samples
b. Excudes y chromosome markers for female samples
c. Based on results from Gentrain sample set
Learn how the Infinium Global Diversity Array with Enhanced PGx-8 v1.0 BeadChip is uniquely suited for pharmacogenomics research applications.
Infinium Global Diversity Array with Enhanced PGx-8 v1.0 Kit (48 Samples)
20044822
Includes six, 8-sample BeadChips and reagents for amplifying...
Sign in to add to cart or see pricing.
List Price:
Discounts:
Infinium Global Diversity Array with Enhanced PGx-8 v1.0 Kit (384 Samples)
20044823
Includes 48, 8-sample BeadChips and reagents for amplifying,...
Sign in to add to cart or see pricing.
List Price:
Discounts:
Infinium Global Diversity Array with Enhanced PGx-8+ v1.0 Kit (48 Samples)
20048347
Includes six, 8-sample BeadChips and reagents for amplifying...
Sign in to add to cart or see pricing.
Infinium Global Diversity Array with Enhanced PGx-8+ v1.0 Kit (384 Samples)
20048348
Includes 48, 8-sample BeadChips and reagents for amplifying,...
Sign in to add to cart or see pricing.
DRAGEN Array Cloud - star allele annotation
20109886
Per sample analysis quota for star allele calling using DRAG...
Sign in to add to cart or see pricing.
List Price:
Discounts:
DRAGEN Array Local - star allele annotation
20109885
Per sample analysis quota for star allele calling using DRAG...
Sign in to add to cart or see pricing.
List Price:
Discounts:
ICA Basic Annual Subscription
20044874
Illumina Connected Analytics (ICA) Basic Annual Subscription...
Sign in to add to cart or see pricing.
Illumina Analytics - 1 iCredit
20042038
iCredits are used for data storage and analysis on either Ba...
Sign in to add to cart or see pricing.
List Price:
Discounts:
Infinium® Assay: An Introduction – Customer Site
20015273
Three-day, hands-on instruction at customer site to familiar...
Sign in to add to cart or see pricing.
Showing of 9
Product
Qty
Unit Price
Total ( items)
You have not selected any items yet.
Please add these products to your cart before leaving the page to avoid losing them.
Product
Catalog ID
Quantity
Unit price
Total ( items)
:
The GDA with Enhanced PGx is ideal for clinical and translational researchers interested in PGx research, polygenic risk score development, genetic disease research, ancestry determination, and more. PGx research aims to enable physicians to tailor treatment through medication substitution or dosage augmentation and reduce potential risks, resulting in lower medical costs, shorter hospital stays, and improved medication safety and efficacy.
The GDA with Enhanced PGx offers genome-wide coverage of > 44K ADME markers, including critical PGx genes such as CYP2D6, compared with ~31K genome-wide ADME markers on the GDA. It also includes a targeted gene amplification step for accurate genotyping of critical genes such as CYP2D6, CYP2B6, and TPMT. > 6K variants from globally recognized PGx databases including PharmGKB, CPIC, ClinVar, and PharmVar are also included.
The GDA with Enhanced PGx workflow contains an additional step for targeted gene amplification (TGA) to disambiguate pseudogenes. The protocol requires a thermal cycler on day 1. On day 2, the TGA reaction product is added to the whole genome amplification (WGA) reaction product and the remaining workflow steps proceed like the standard GDA, beginning with fragmentation. The overall workflow time is similar for both assays.
