NextSeq 1000/2000 Reagents

NextSeq 1000/2000 reagent kits contain a reagent cartridge, flow cell, and resuspension buffer. Multiple flow cell configurations offer adjustable output based on project needs.
Select Product(s)
Which products do I need?
Reagents

NextSeq 1000/2000 P1 Reagents (300 Cycles)

20050264

Price



NextSeq 1000/2000 P2 Reagents (100 Cycles) v3

20046811

Price



NextSeq 1000/2000 P2 Reagents (200 Cycles) v3

20046812

Price



NextSeq 1000/2000 P2 Reagents (300 Cycles) v3

20046813

Price



NextSeq 2000 P3 Reagents (50 Cycles)

20046810

Price



NextSeq 2000 P3 Reagents (100 Cycles)

20040559

Price



NextSeq 2000 P3 Reagents (200 Cycles)

20040560

Price



NextSeq 2000 P3 Reagents (300 Cycles)

20040561

Price


Accessory Products

NextSeq 1000/2000 Read and Index Primers

20046115

Price



NextSeq 1000/2000 Index Primer Kit

20046116

Price



NextSeq 1000/2000 Read Primer Kit

20046117

Price



PhiX Control v3

FC-110-3001

Price



NextSeq 1000/2000 Recycling Tool

20050631

Price



Product Highlights

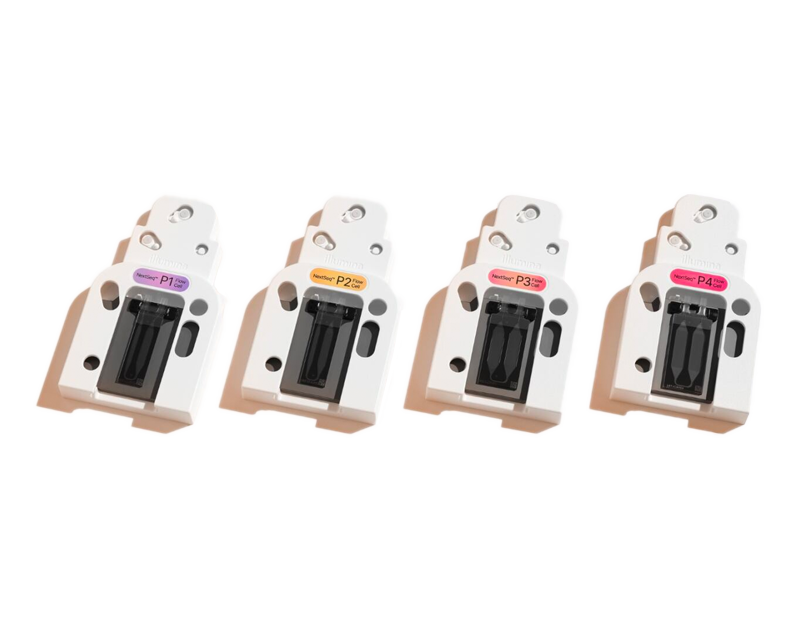

Multiple Flow Cell Configurations
  • Enables sequencing output of 30-360 Gb per run, providing adjustable output based on project needs
  • Increased flexibility to support new and emerging applications
Miniaturized Design Allows for Easy Storage, Use and Disposal
  • Minimal packaging and waste
  • Integrated and recyclable flow cell / reagent cartridge
Design Significantly Reduces the Cost and Complexity of Mid-throughput Sequencing
  • Enhanced output, lower operating costs, and increased ease of use
Browse the Data in BaseSpace Sequence Hub

The Illumina Public Data page can be found here.

NextSeq 2000: Illumina Exome - Illumina DNA Prep with Enrichment (Replicates of NA12878)
AmpliSeq for Illumina Comprehensive Cancer Panel (Replicates of NA12878)
NextSeq 2000: TruSeq Stranded mRNA (Replicates of UHR)

Access to this data requires a BaseSpace Sequence Hub login.
Register for BaseSpace Sequence Hub

Frequently Purchased Together

Specifications

Comparison Tables

Equivalent Performance for Exome Sequencing
  NextSeq 550 System NextSeq 2000 System Run 1 NextSeq 2000 System Run 2
Primary run metrics
Paired-end reads PF 514.2M 518.3M 532.8M
Yield 103.9 Gb 103.7 Gb 106.5 Gb
Error rate 0.34% 0.32% 0.30%
Secondary analysis metrics
Autosome callability 95.61% 95.95% 95.94%
% aligned reads 99.15% 99.08% 99.07%
Mean target coverage depth 78.05 77.85 78.15
Uniformity of coverage 93.20% 93.23% 93.28%
SNV precision 99.3% 99.3% 99.33%
SNV recall 94.1% 94.2% 94.27%
Indel precision 88.0% 89.3% 89.19%
Indel recall 83.3% 84.7% 84.75%
Equivalent Performance for Bulk mRNA Sequencing
  NextSeq 550 System NextSeq 2000 System Run 1 NextSeq 2000 System Run 2
Metric
Paired-end reads PF 422.4M 511.6M 523.7M
Yield 63.6 Gb 76.76 Gb 78.25 Gb
Error rate 0.27% 0.27% 0.33%
Mean no. of genes detected (n = 24) 24,355 24,284 24,357

Supporting Data and Figures

Quantification of specific RNA targets by bulk mRNA-Seq using the NextSeq 550 System are plotted on the y-axis. Results using the NextSeq 2000 System are plotted on the x-axis. Concordance of data is observed along the y = x trendline (R2 > 0.99 across four replicates).

concordant results figure
Read length NextSeq 1000/2000 P1 Reagents NextSeq 1000/2000 P2 Reagents NextSeq 2000 P3 Reagents
Output per flow cella
1 × 50 bp (P3 only)     60 Gb
2 × 50 bp   40 Gb 120 Gb
2 × 100 bp   80 Gb 240 Gb
2 × 150 bp 30 Gb 120 Gb 360 Gb
Reads CPF 100M 400M 1.2B
Quality scoresb
1 × 50 bp ≥ 90% of bases higher than Q30
2 × 50 bp ≥ 90% of bases higher than Q30
2 × 100 bp ≥ 85% of bases higher than Q30
2 × 150 bp ≥ 85% of bases higher than Q30
Run time
1 × 50 bp     ~11 hours
2 × 50 bp   ~13 hours ~19 hours
2 × 100 bp   ~21 hours ~33 hours
2 × 150 bp ~19 hours ~29 hours ~48 hours
  1. Output specifications based on a single flow cell using Illumina PhiX control library at supported cluster densities. CPF = clusters passing filter.
  2. Quality scores are based on using an Illumina PhiX control library. Performance may vary based on library type and quality, insert size, loading concentration, and other experimental factors
